Test Reporter

This Github Action displays test results from popular testing frameworks directly in GitHub.

✔️ Parses test results in XML or JSON format and creates nice report as Github Check Run

✔️ Annotates code where it failed based on message and stack trace captured during test execution

✔️ Provides final conclusion and counts of passed, failed and skipped tests as output parameters

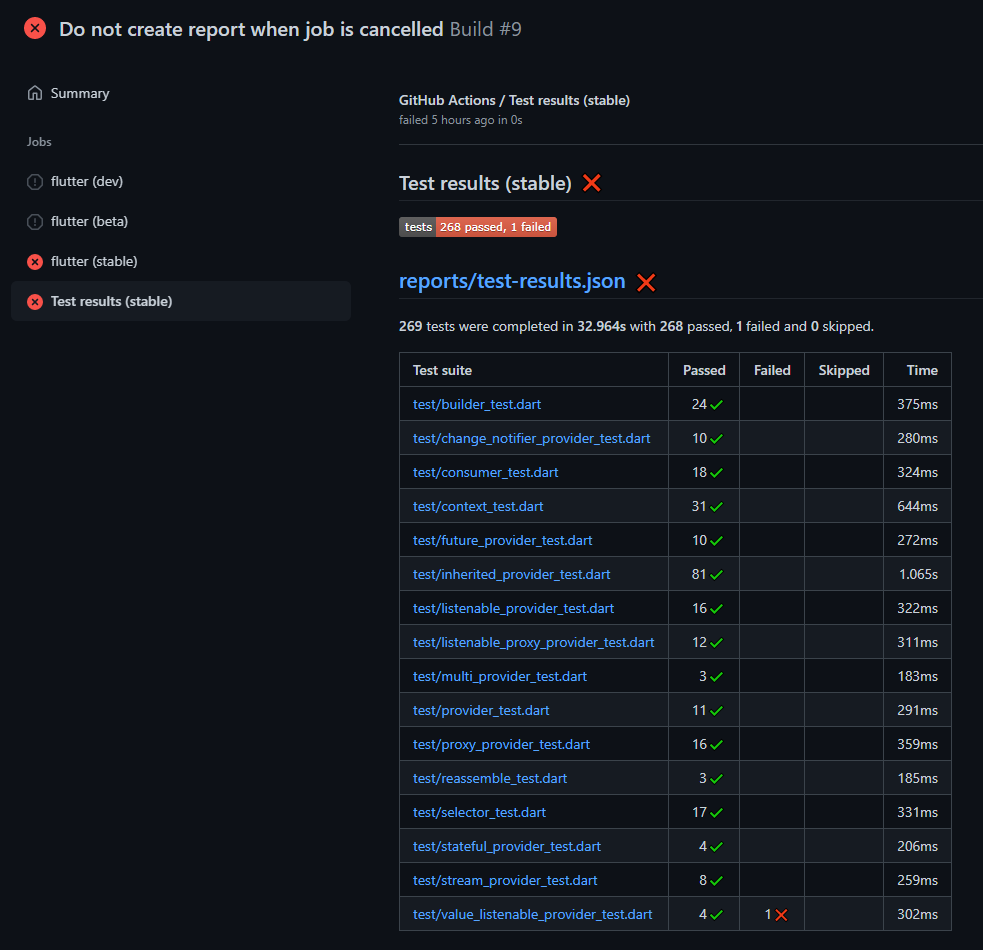

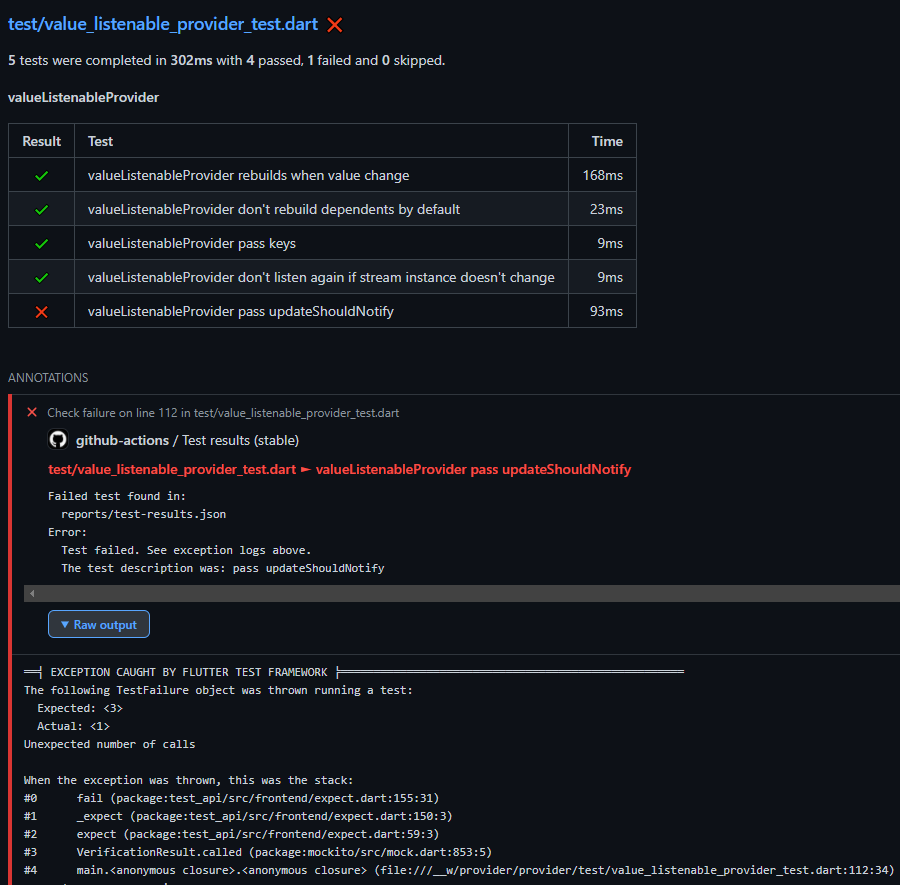

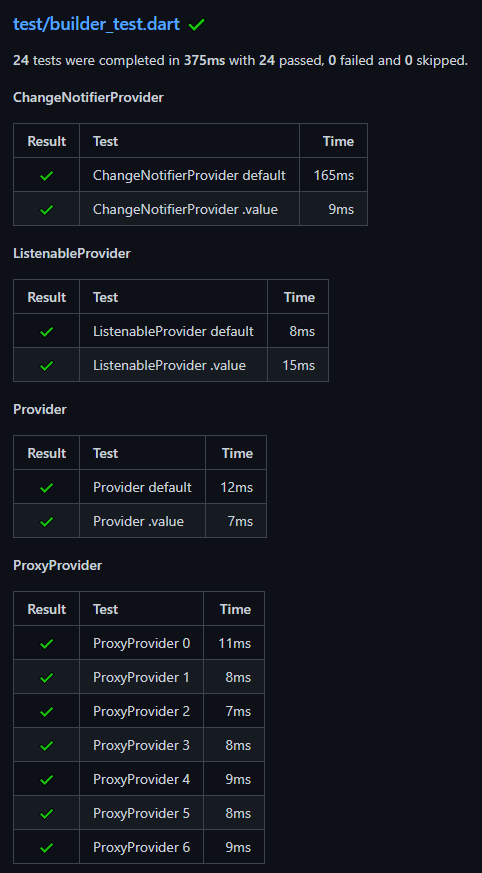

How it looks:

Supported languages / frameworks:

• .NET / xUnit / NUnit / MSTest
• Dart / test
• Flutter / test
• JavaScript / JEST

For more information see Supported formats section.

Do you miss support for your favorite language or framework? Please create Issue or contribute with PR.

Example

Following setup does not work in workflows triggered by pull request from forked repository. If that's fine for you, using this action is as simple as:

on:
  pull_request:
  push:
jobs:
  build-test:
    name: Build & Test
    runs-on: ubuntu-latest
    steps:
      - uses: actions/checkout@v2     # checkout the repo
      - run: npm ci                   # install packages
      - run: npm test                 # run tests (configured to use jest-junit reporter)

      - name: Test Report
        uses: dorny/test-reporter@v1
        if: success() || failure()    # run this step even if previous step failed
        with:
          name: JEST Tests            # Name of the check run which will be created
          path: reports/jest-*.xml    # Path to test results
          reporter: jest-junit        # Format of test results

Recommended setup for public repositories

Workflows triggered by pull requests from forked repositories are executed with read-only token and therefore can't create check runs. To workaround this security restriction it's required to use two separate workflows:

1. CI runs in the context of PR head branch with read-only token. It executes the tests and uploads test results as build artifact
2. Test Report runs in the context of repository main branch with read/write token. It will download test results and create reports

PR head branch: .github/workflows/ci.yml

name: 'CI'
on:
  pull_request:
jobs:
  build-test:
    runs-on: ubuntu-latest
    steps:
      - uses: actions/checkout@v2         # checkout the repo
      - run: npm ci                       # install packages
      - run: npm test                     # run tests (configured to use jest-junit reporter)
      - uses: actions/upload-artifact@v2  # upload test results
        if: success() || failure()        # run this step even if previous step failed
        with:
          name: test-results
          path: jest-junit.xml

default branch: .github/workflows/test-report.yml

name: 'Test Report'
on:
  workflow_run:
    workflows: ['CI']                     # runs after CI workflow
    types:
      - completed
jobs:
  report:
    runs-on: ubuntu-latest
    steps:
    - uses: dorny/test-reporter@v1
      with:
        artifact: test-results            # artifact name
        name: JEST Tests                  # Name of the check run which will be created
        path: '*.xml'                     # Path to test results (inside artifact .zip)
        reporter: jest-junit              # Format of test results

Usage

- uses: dorny/test-reporter@v1
  with:

    # Name or regex of artifact containing test results
    # Regular expression must be enclosed in '/'.
    # Values from captured groups will replace occurrences of $N in report name.
    # Example:
    #   artifact: /test-results-(.*)/
    #   name: 'Test report $1'
    #   -> Artifact 'test-result-ubuntu' would create report 'Test report ubuntu'
    artifact: ''

    # Name of the Check Run which will be created
    name: ''

    # Coma separated list of paths to test results
    # Supports wildcards via [fast-glob](https://github.com/mrmlnc/fast-glob)
    # All matched result files must be of same format
    path: ''

    # Format of test results. Supported options:
    #   dart-json
    #   dotnet-trx
    #   flutter-json
    #   jest-junit
    reporter: ''

    # Limits which test suites are listed:
    #   all
    #   failed
    list-suites: 'all'

    # Limits which test cases are listed:
    #   all
    #   failed
    #   none
    list-tests: 'all'

    # Limits number of created annotations with error message and stack trace captured during test execution.
    # Must be less or equal to 50.
    max-annotations: '10'

    # Set action as failed if test report contain any failed test
    fail-on-error: 'true'

    # Relative path under $GITHUB_WORKSPACE where the repository was checked out.
    working-directory: ''

    # Personal access token used to interact with Github API
    # Default: ${{ github.token }}
    token: ''

Output parameters

Name	Description
conclusion	success or failure
passed	Count of passed tests
failed	Count of failed tests
skipped	Count of skipped tests
time	Test execution time [ms]

Supported formats

dart-json

Test run must be configured to use JSON reporter. You can configure it in dart_test.yaml:

file_reporters:
  json: reports/test-results.json

Or with CLI arguments:

dart test --file-reporter="json:test-results.json"

For more information see:

• test package
• test configuration

dotnet-trx

Test execution must be configured to produce Visual Studio Test Results files (TRX). To get test results in TRX format you can execute your tests with CLI arguments:

dotnet test --logger "trx;LogFileName=test-results.trx"

Or you can configure TRX test output in *.csproj or Directory.Build.props:

<PropertyGroup>
  <VSTestLogger>trx%3bLogFileName=$(MSBuildProjectName).trx</VSTestLogger>
  <VSTestResultsDirectory>$(MSBuildThisFileDirectory)/TestResults/$(TargetFramework)</VSTestResultsDirectory>
</PropertyGroup>

Supported testing frameworks:

• xUnit
• NUnit
• MSTest

For more information see dotnet test

flutter-json

Test run must be configured to use JSON reporter. You can configure it in dart_test.yaml:

file_reporters:
  json: reports/test-results.json

Or with (undocumented) CLI argument:

flutter test --machine > test-results.json

According to documentation dart_test.yaml should be at the root of the package, next to the package's pubspec. On current stable and beta channels it doesn't work and you have to put dart_test.yaml inside your test folder. On dev channel it's already fixed.

For more information see:

• test package
• test configuration
• flutter-cli
• unit testing introduction

jest-junit

JEST testing framework support requires usage of jest-junit reporter. It will create test results in junit XML format which can be then processed by this action. You can use following example configuration in package.json:

"scripts": {
  "test": "jest --ci --reporters=default --reporters=jest-junit"
},
"devDependencies": {
  "jest": "^26.5.3",
  "jest-junit": "^12.0.0"
},
"jest-junit": {
  "outputDirectory": "reports",
  "outputName": "jest-junit.xml",
  "ancestorSeparator": " › ",
  "uniqueOutputName": "false",
  "suiteNameTemplate": "{filepath}",
  "classNameTemplate": "{classname}",
  "titleTemplate": "{title}"
}

Configuration of uniqueOutputName, suiteNameTemplate, classNameTemplate, titleTemplate is important for proper visualization of test results.

GitHub limitations

Unfortunately there are some known issues and limitations caused by GitHub API:

• Test report (i.e. Check Run summary) is markdown text. No custom styling or HTML is possible.
• Maximum report size is 65535 bytes. Input parameters list-suites and list-tests will be automatically adjusted if max size is exceeded.
• Test report can't reference any additional files (e.g. screenshots). You can use actions/upload-artifact@v2 to upload them and inspect manually.
• Check Runs are created for specific commit SHA. it's not possible to specify under which workflow test report should belong if there are more workflows running for same SHA. Thanks to this GitHub "feature" it's possible your test report will appear in unexpected place in GitHub UI. For more information see #67.

See also

• paths-filter - Conditionally run actions based on files modified by PR, feature branch or pushed commits

License

The scripts and documentation in this project are released under the MIT License
